UIX Forge

UIX Forge (custom:uix-forge) is a custom Lovelace element that combines template-driven configuration with additional behaviors called sparks. Use it to:

  • Forge any standard Home Assistant element from templates, allowing the entire element config to react to entity states, user, browser and other template variables.
  • Add sparks — self-contained behaviors that augment the forged element.
  • Apply UIX styles to the forged element, exactly like any other element. Additionally any spark variables are made available in the uixForge template variable.

Wrap in UIX Forge

Look for the 💡 icon in YAML code editors for card, badge, row, picture-element, card-feature to easily wrap the existing element's code in UIX Forge to quickly get started from a base element.

Basic structure

type: custom:uix-forge
forge:
  mold: card
  # optional sparks, macros, hidden, grid_options …
element:
  type: tile
  entity: "{{ 'sun.sun' }}"
  # any valid element config, templates supported

forge controls how UIX Forge itself behaves; element is the configuration of the Home Assistant element that will be rendered inside it.

Forge options

Key Type Allows Templates Default Description
mold string (required) How the element is forged, with each mold handling required forged element behaviors within Home Assistant Frontend. Standard molds: "card", "badge", "row", "picture-element", "section", "footer", "card-feature". Cross-context molds: "card_as_row", "card_as_badge", "row_as_card", "row_as_badge", "badge_as_card", "badge_as_row", "badge_as_picture_element". See Cross-context molds.
macros mapping — template macros available to all templates in the forge config. Macros are also passed to uix config in both forge and forged element. See UIX Styling - variables and macros.
billets mapping — billets — named YAML values available as template constants in all templates in the forge config. See Billets
hidden boolean ✅ false When truthy the element is hidden.
grid_options mapping ✅ — Lovelace grid options (e.g. rows, columns) for when mold is card. Ignored for any other mold.
show_error boolean false When true, show the Lovelace error card instead of hiding it when the forged element errors.
template_nesting string "<<>>" Four-character string used to escape nested templates. A single setting controls both Jinja forms: with the default <<>>, use <<...>> for {{...}} and <%...%> for {%...%} in the same nested template. Use when the element config itself contains Jinja2-like syntax. When nesting multiple forge layers deep, add an extra <> pair per additional layer (e.g. <<< >>> and <<% %>> for two layers of nesting).
sparks list ✅ [] List of spark configurations to attach to the forged element.
delayed_hass boolean - Flag to delay the passing of hass object to the card until after it is loaded. Used to suppress console errors or other issues for some custom cards. e.g. apexcharts_card.

Warning

Theme macros are only available in UIX styling templates, not in UIX Forge element/forge templates. Use UIX Forge Global foundries to define forge.macros available globally or per mold.

Element config

Any valid Lovelace element configuration. Every string value in element is processed as a template, giving access to the same variables as UIX templates (config, user, browser, hash, panel).

The uix key inside element is passed through as is to UIX Styling, with UIX Styling rendering any templates. Use it to style the forged element as you would any other element:

Forge example

Example forge output

type: custom:uix-forge
forge:
  mold: card
element:
  type: tile
  entity: light.bed_light
  uix:
    style: |
      ha-card {
        --tile-color: teal !important;
      }

Element entities config

You can also use direct templates in the config, eg. template the entities inside a type: entities card. This can be an alternative for using auto-entities custom plugin for entities templates.

type: custom:uix-forge
forge:
  mold: card
element:
  type: entities
  entities: |
    {{ integration_entities('sun') }}

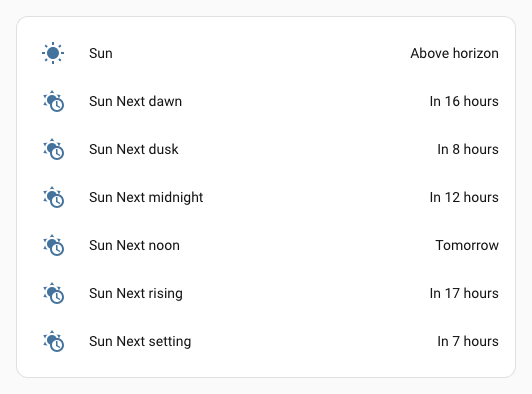

Element entities config example

Blank card config

When using UIX Forge molds card, card_as_row or card_as_badge, a default blank card, custom:uix-forge-blank-card will be used when no element or element.type is set. This allows for a blank card to which UIX Forge sparks can be applied directly.

A default config with no sparks will show a placeholder message.

type: "custom:uix-forge"
forge:
  mold: card

Empty uix-forge-blank-card example

Setting element.title will show a card with title only.

type: "custom:uix-forge"
forge:
  mold: card
element:
  title: "Blank Card Title"

uix-forge-blank-card with title example

The blank card can be styled to be transparent in context by setting element.clear. For molds card_as_row and card_as_badge this is done automatically when the blank card is in use.

This example is of UIX Forge using mold: card_as_row as an entities row to generate a blank card over which an overlay-icon spark is displayed.

type: entities
title: Entities Card
entities:
  - type: custom:uix-forge
    forge:
      mold: card_as_row
      sparks:
        - type: overlay-icon
          icon: mdi:shimmer
          icon_color: red
          icon_position:
            left: 10px
            top: 8px
      uix:
        style: |
          :host {
            --uix-forge-blank-card-height: 40px;
          }

uix-forge-blank-card used as card_as_row

Tip

The blank card content div will be given a height of var(--row-height, 56px) when no other content has been applied via a spark, either as a sibling to or child of the div. However when there is a sibling to the div but it is empty, the height will be 0px. IN all cases this height can be styled explicitly using --uix-forge-blank-card-height CSS var as per the card_as_row example.

Template variables and macros

Macros from the forge are passed through to UIX Styling for both the forge and the forged element, making forge macros available to use in UIX Styling for both forge and forged element.

Templates will run in different contexts for forging, UIX styling the forge and UIX styling the element. The table below summarizes the different contexts.

Context Template variables
Templates in forge and element, except uix styling forge config: config.forge
element config: config.element
config.entity is available if included in global uix-forge config.
Templates in forge uix styling forge config: config.forge
element config: config.element
config.entity is available if included in global uix-forge config.
Templates in element uix styling. Here the template is run in regular uix styling context for the forged element forge config: unavailable
element config: config
config.entity is available if included in global uix-forge config.

Tip

If you specify entity on global uix-forge config it will always be available no matter the context. You always need to specifically specify the element entity if it needs one - you can use a template to use config.entity.

type: custom:uix-forge
entity: light.bed_light
forge:
  mold: card
element:
  type: tile
  entity: "{{ config.entity }}"
  uix:
    style: |
      :host {
        --ha-card-border-color: {{ 'green' if is_state(config.entity, 'on') else 'red' }};
        --ha-card-border-width: 2px;
      }

Example using config entity

Warning

To use config.entity as a template variable in either forge or element templates you need to define entity in global uix-forge config as a string (templates not supported). If you wish to compose an entity in a foundry from a variable string part you can use billets and billet interpolation.

Example of a file foundry with an entity using billet interpolation.

uix_foundries:
  uix_media_player:
    forge:
      mold: card
      billets:
        player_entity: media_player.cast_{player}
        player: ~
        name: ~
        icon: music
    element:
      type: custom:mini-media-player
      artwork: material
      adaptive_color: true
      entity: "{{ player_entity }}"
      icon: mdi:{{ icon }}
      name: >
        {% if is_state_attr(player_entity,'app_name','Spotify') %}
          {{ name }}: Spotify
        {% elif is_state_attr(player_entity,'app_name','Music Assistant') %}
          {{ name }}: Music Assistant
        {% else %}
          {{ name }}
        {% endif %}

Full example including macro

Full example including macro

Example output

type: custom:uix-forge
entity: light.bed_light
forge:
  mold: card
  macros:
    state_color:
      params:
        - entity_id
      template: "{{ 'red' if is_state(entity_id, 'on') else 'green' }}"
  uix:
    style: |
      :host {
        --ha-card-border-radius: 20px;
        --ha-card-border-color: {{ state_color(config.entity) }};
        --ha-card-border-width: 3px;
      }
element:
  type: tile
  entity: "{{ config.entity }}"
  name: "{{ device_name(config.entity) }} - {{ state_translated(config.entity) }}"
  uix:
    style: |
      span.primary {
        color: {{ state_color(config.entity) }};
      }

Billets

Billets are named YAML values defined under forge.billets. They are available as template constants in all forge templates and in any uix: style on the forge card or the forged element, and can be used without parentheses, unlike macros. Billet string values may reference other billets via {name} substitution — see Billet interpolation below.

Warning

Billets cannot contain Jinja2 templates themselves, except inside nested uix objects where the template is rendered by UIX Styling and not UIX Forge.

type: custom:uix-forge
entity: light.bed_light
forge:
  mold: card
  grid_options:
    columns: 7
  billets:
    my_color: teal
    max_brightness: 255
    tags:
      - living_room
      - ambient
element:
  type: tile
  entity: "{{ config.entity }}"
  name: "{{ my_color | capitalize }} light"
  tap_action:
    action: perform-action
    perform_action: light.turn_on
    target:
      entity_id: "{{ config.entity }}"
    data:
      brightness: "{{ max_brightness }}"
  uix:
    style: |
      ha-card {
        --tile-color: {{ my_color }} !important;
      }
      ha-tile-info span:nth-of-type(2):after {
      {%- if is_state_attr(config.entity, 'brightness', max_brightness) -%}
        content: ' - {{ tags | join(', ') }} - MAX';
        font-weight: 900;
      {%- else -%}
        content: ' - {{ tags | join(', ') }}';
      {% endif -%}
      }

Example using billets

Billet types

The YAML type of a billet determines how it is represented in templates:

YAML type Example Jinja2 type Template usage
Empty (~ or null) my_billet: ~ none {{ my_billet }} → empty
String my_billet: hello str {{ my_billet }} → hello
Number my_billet: 42 int or float {{ my_billet + 1 }} → 43
Boolean my_billet: true bool {% if my_billet %}…{% endif %}
List my_billet: [1, 2, 3] list {{ my_billet \| join(', ') }}
Mapping my_billet: {a: 1} dict {{ my_billet.a }}

Each billet is injected as a {%- set name = value -%} statement, preserving the native Jinja2 type for all YAML types — no macro wrapper is needed.

Billet interpolation

String billet values may reference other billets using {name} syntax — a simple substitution performed before the billets are turned into Jinja2 variables. Use {name[N]} to reference element N (0-indexed) from a list billet:

forge:
  billets:
    room: "bed"                         # plain string
    entity_id: "light.{room}_light"     # → "light.bed_light"
    scenes:
      - bright
      - dim
    default_scene: "{scenes[0]}"        # → "bright"

Billet references are resolved in dependency order, so declaration order does not matter:

billets:
  entity: "light.{room}_light" # → "light.bedroom_light"  (resolved after room)
  room: "{base}room"           # → "bedroom"  (resolved after base)
  base: "bed"

Circular references

If billets reference each other in a cycle (directly or through a chain), none of the cycle members can be resolved. UIX logs an error for each and leaves their values unchanged.

Billets and foundries

Billets follow the same override behavior as macros: a foundry can define billets, and local forge config can override individual billet entries. Only the billets whose names are referenced in a template are included in that template's preamble.

See Billets in foundries for patterns on defining empty billet slots in a foundry and handling the none case in templates.

Ignoring templates in element config

{# uix-forge.ignore #}

If you need to pass through a whole template unchanged to the forged element, you can have UIX Forge ignore the template altogether. Use this when the forged element accepts templates as part of config and template nesting is not required.

Templates are ignored by UIX Forge when they include {# uix-forge.ignore #}.

Example markdown cards showing use of {# uix-forge.ignore #}.

cards:
  # forged markdown card where `content` templates is rendered by UIX Forge where `config.entity` is valid
  - type: custom:uix-forge
    entity: light.bed_light
    forge:
      mold: card
    element:
      type: markdown
      content: |
        **config.entity:** {{ config.entity | default('light.ceiling_lights') }}

  # forged markdown card where `content` template is ignored by UIX Forge
  # config.entity does not exist for markdown card and will get default text
  - type: custom:uix-forge
    entity: light.bed_light
    forge:
      mold: card
    element:
      type: markdown
      content: |
        {# uix-forge.ignore #}
        **config.entity:** {{ config.entity | default('light.ceiling_lights') }}

Markdown card with ignored template example

When you need for a template to include both local forge or element template and a template for the card itself template nesting needs to be used.

Ignoring templates and multiple nesting of UIX Forge

As templates are ignored using a Jinja2 comment, {# #} the template as rendered will not have the comment. So when using with multiple nesting of UIX Forge template nesting will need to be used to control how templates are rendered.

Template nesting

If the element you are forging uses Jinja style templates or same markers (e.g. ha-nunjucks) then you will need to either ignore or nest these templates. The default nesting characters are <<>>. This can be adjusted in forge config if required. Jinja statement/flow-control delimiters ({% %}) are inferred from the nesting character config. When default nesting characters <<>> are in use, use <% %> for single nesting of Jinja statements/flow-control syntax.

Single level template nesting example

Below is an example using custom:template-entity-row which itself supports templates. This requires any template that needs to be rendered by custom:template-entity-row to be nested in <<>> nesting characters.

type: custom:uix-forge
entity: input_boolean.test_boolean
forge:
  mold: card
element:
  type: entities
  entities:
    - type: custom:template-entity-row
      entity: "{{ config.entity }}"
      state: |
        <<states(config.entity,with_unit=True)>>
The rendered config for the entities card is below. You will see that the nested template gets rendered to a final template with {#uix#} template comments surrounding the template. This template will then be rendered in custom:template-entity-row, with config.entity being a reference to the rendered config entity, which is input_boolean.test_boolean.
type: entities
entities:
  - type: 'custom:template-entity-row'
    entity: input_boolean.test_boolean
    state: '{#uix#}{{states(config.entity,with_unit=True)}}{#uix#}'

Multiple nesting levels

When there are multiple forge layers, each additional layer requires one extra < / > pair (e.g. <<< / >>> and <<% %>> for two levels). UIX strips one nesting level internally at each intermediate forge layer, so the correct number of delimiters reaches the final forge layer automatically — you only need to set template_nesting to the total number of layers deep the value needs to travel.

Multiple nesting levels example with output
type: custom:uix-forge
entity: media_player.kitchen # overall entity in global uix-forge config
forge:
  mold: card
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 40% auto
      column_gap: 0px
element:
  type: grid
  square: false
  cards:
    - type: custom:uix-forge
      entity: "{{ config.entity }}" # use config.entity directly for nested forge
      forge:
        mold: card
      element:
        entity: "{{ config.entity }}" # use config.entity directly for nested forge element
        type: tile
        state_content: is_volume_muted
    - type: custom:uix-forge
      entity: "{{ config.entity }}" # use config.entity directly for nested forge
      forge:
        mold: card
      element:
        type: custom:custom-features-card
        features:
          - type: custom:service-call
            entries:
              - type: button
                entity_id: << config.entity >> # use first level nesting
                icon: mdi:volume-high
                haptics: true
                tap_action:
                  action: perform-action
                  perform_action: media_player.volume_mute
                  target:
                    entity_id: |
                      <<< config.entity >>> {# use second level nesting #}
                  data:
                    is_volume_muted: true

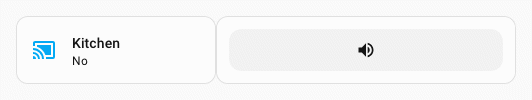

Nesting example

Multiple nesting levels with markdown card

This example shows that the markdown output will render the first level nested template and just output the second level nested template, showing exactly how nesting works.

type: custom:uix-forge
forge:
  mold: card
element:
  type: markdown
  content: |
    <<% if true %>><<< True >>><<% endif %>>
    <% if true %><< True >><% endif %>

Template nesting in markdown card content

Template nesting and macros

Template nesting is not supported in macros. It is impossible to get a rendered template text from a macro. Macros are available to UIX Forge templates and UIX Styling, but templates are not available to be rendered in the context of any nested/forged card including Home Assistant markdown card.

Tip

Whether to nest markdown content templates or not depends on your use case. If templates are not nested, they are rendered by UIX Forge and the whole markdown card will be updated when the template updates. If your markdown templates are dynamic and update frequently you are best to use template nesting so the markdown card renders the template, using its optimized rendering to update only the output line that has changed. If you need to put complex logic in a macro for markdown card, you can store that in custom_templates in Home Assistant and then call as a nested template. e.g. if you macro in custom_templates is content() then you can use << content() >> in your markdown card to have the markdown card render the content() macro.

Using billets in nested templates

Billet values are fully available as Jinja2 variables inside <<...>> expressions. When UIX builds the template, billet variables are set as Jinja2 {%- set ... -%} statements before Home Assistant evaluates the template body. This means {{ billet_name }} written inside <<...>> is evaluated by HA's template engine and the resolved value becomes part of the expression that the receiving card gets.

Coming from decluttering-card?

In tools like decluttering-card, a variable placeholder such as [[id]] is substituted as plain text into the string before anything else happens. In UIX Forge the mechanism is different but the end result is the same: UIX Forge injects billet variables into the generated Jinja2 template, and Home Assistant evaluates them together with the rest of the template body, so {{ id }} inside <<...>> is replaced with the billet's value before the receiving card ever sees the string.

The important difference is that you must use standard Jinja2 expression syntax — {{ billet_name }} — not the billet-to-billet interpolation syntax ({billet_name}). The {...} interpolation syntax is only available inside billet value strings (for one billet referencing another), not inside template expressions.

A common use-case is driving an auto-entities filter template from a billet. For example, with an id billet holding a room slug, you can build the device entity list for that room:

type: custom:uix-forge
forge:
  mold: card
  billets:
    id: living_room
element:
  type: custom:auto-entities
  filter:
    template: >-
      <<device_entities(device_id('switch.{{id}}'))
      |reject('search','device')|list>>
  card:
    type: entities

When UIX processes the template, it prepends {%- set id = "living_room" -%}. HA then evaluates the template body, resolving {{id}} to living_room. The expression received by auto-entities is:

{#uix#}{{ device_entities(device_id('switch.living_room'))|reject('search','device')|list }}{#uix#}

auto-entities evaluates this Jinja2 expression and populates the card with the matching entities. Override the id billet per instance (or in a foundry) to reuse the same forge across multiple rooms without duplicating the filter logic.

Tip

Because billet values are resolved at UIX template evaluation time, they are baked into the expression that the receiving card gets. If you need the receiving card to re-evaluate a value dynamically (e.g. based on changing HA state), express that logic directly as a Jinja2 function call inside the <<...>> block rather than relying on a billet for the dynamic part.

Read if you wish to create your own nesting sequence

When using template nesting, the template nesting characters are replaced with Jinja raw directives before the template is rendered. The replacement includes a marker for internal readiness code to be able to recognize a rendered template with nesting. With the default <<>>, << is replaced with {% raw %}{#uix#}{{{% endraw %} and >> is replaced with {% raw %}}}{#uix#}{% endraw %}; flow-control delimiters are inferred automatically, so <% is replaced with {% raw %}{#uix#}{%{% endraw %} and %> is replaced with {% raw %}%}{#uix#}{% endraw %}. If you try and create these sequences without using the nesting shorthand, they must be replicated EXACTLY for forge internal readiness checks to complete.

Using with auto-entities

Tip

For simple entities templating you may wish to just forge an entities card and template. entities: config. See Element entities config.

UIX Forge supports custom:auto-entities in two ways:

  1. When UIX Forge is used as the main card for auto-entities, UIX Forge accepts and passes through entities to the element config, though will not be available on config.element.entities
  2. When using UIX Forge as an entity card via auto-entities include filter options, UIX Forge accepts entity that auto-entities passes through, but does not pass through to element config. It will be available in templates using config.entity and you can use {{ config.entity }} when you need to specify an entity for the card options.
auto-entities example
type: custom:auto-entities
filter:
  include:
    - options:
        type: custom:uix-forge
        # auto-entities will populate entity in config, so we can use it in templates
        forge:
          mold: card
          sparks:
            - type: tooltip
              for: hui-tile-card $ ha-card
              content: >-
                {{ state_attr(config.entity,
                'friendly_name') }} is {{ states(config.entity) }}
        element:
          entity: "{{ config.entity }}"
          type: tile
      area: bedroom
  exclude: []
card:
  square: false
  type: grid
show_empty: true
card_param: cards

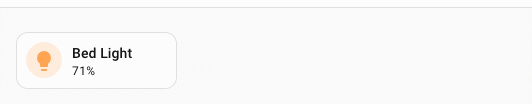

Example using auto-entities

UIX styling

Add a uix key under forge to apply UIX styling to the forge element wrapper itself. Template variables config.forge, config.element, and uixForge are available in the style templates, where config.forge and config.element are the resolved forge and element configs and uixForge contains any spark template variables. config.entity will also be available if set in the global uix-forge config.

type: custom:uix-forge
forge:
  mold: card
  uix:
    style: |
      :host {
        --ha-card-border-radius: 50px;
      }
element:
  type: tile
  entity: light.bed_light

Example using uix styling

Element styling

UIX Styling can be applied to the element in the usual way. Only the usual config variable is available which is the standard variable resolved by UIX Styling for elements.

Warning

Element UIX Styling will NOT contain the forge and spark variables available in forge UIX Styling. If you wish to use these then use UIX Styling on the forge rather than the forged element.

type: custom:uix-forge
forge:
  mold: card
  uix:
    style: |
      :host {
        --ha-card-border-radius: 50px;
      }
element:
  type: tile
  entity: light.bed_light
  uix:
    style: |
      span.primary::after {
        content: ' - {{ state_translated(config.entity) }}';
      }

Example using uix element styling

Theme styling

The theme type given to UIX forge container matches the mold type, including cross-context molds. This can be useful in targeting the UIX forge container and styling the contained element.

Theme cross-context mold: card_as_badge

Here styling is given to all cards used as badges by applying theme styling to uix-card-as-badge-yaml. The theming assumes all cards used as badges are home-summary cards. energy is commented out as the demo integration used for image generation does not have energy set up.

Theme:

uix-card-as-badge-yaml: |
  .: |
    :host {
      --ha-tile-info-primary-font-size: var(--ha-font-size-s);
      --ha-card-border-radius: var(--ha-badge-border-radius, calc(var(--ha-badge-size, 36px) / 2));
    }
  hui-home-summary-card $: |
    ha-tile-container {
      line-height: 0;
    }
    ha-tile-icon {
      --mdc-icon-size: 18px;
      --tile-icon-size: 18px;
    }
  hui-home-summary-card $ ha-tile-info $: |
    div.info {
      flex-direction: row;
      align-items: center;
      gap: var(--ha-space-2);
    }
    div.info slot.primary span,
    div.info slot.secondary span {
      overflow: visible;
    }
  hui-home-summary-card $$ ha-tile-container $: |
    .container {
      margin: 0;
    }
    .content {
      gap: var(--ha-space-2) !important;
      padding: 8px 10px !important;
      min-height: unset !important;
    }

Dashboard with home-summary cards as badges:

- type: sections
  max_columns: 10
  title: Home Summary Cards as Badges
  path: home-summary-cards-as-badges
  header:
    layout: center
    badges_position: bottom
    badges_wrap: wrap
  badges:
    - type: custom:uix-forge
      forge:
        mold: card_as_badge
      element:
        type: home-summary
        summary: light
        tap_action:
          action: navigate
          navigation_path: /light?historyBack=1
    - type: custom:uix-forge
      forge:
        mold: card_as_badge
      element:
        type: home-summary
        summary: climate
        tap_action:
          action: navigate
          navigation_path: /climate?historyBack=1
    - type: custom:uix-forge
      forge:
        mold: card_as_badge
      element:
        type: home-summary
        summary: security
        tap_action:
          action: navigate
          navigation_path: /security?historyBack=1
    - type: custom:uix-forge
      forge:
        mold: card_as_badge
      element:
        type: home-summary
        summary: media_players
        tap_action:
          action: navigate
          navigation_path: /home/media-players
    # - type: custom:uix-forge
    #  forge:
    #    mold: card_as_badge
    #  element:
    #    type: home-summary
    #    summary: energy
    #    tap_action:
    #      action: navigate
    #      navigation_path: >-
    #        /energy/overview?historyBack=1&backPath=/dashboard-root/view-path
    - type: custom:uix-forge
      forge:
        mold: card_as_badge
      element:
        type: home-summary
        summary: maintenance
        tap_action:
          action: navigate
          navigation_path: >-
            /maintenance?historyBack=1&backPath=/dashboard-root/view-path

Theming home-summary badges as cards

Sections

When using UIX Forge for a section in sections view, use the YAML section editor (use three dots menu) and change type to custom: uix-forge. Set forge mold to section.

When using UIX Forge for sections, the following config keys can be set directly to configure how the section shows, though they do not support templates:

  • row_span
  • column_span
  • background
type: custom:uix-forge
forge:
  hidden: # use hidden to control visibility, templates supported
  # ...
element:
  # ...
# section only main configuration keys. Visibility not supported.
row_span: # row span for section
column_span: # column span for section
background: # background for section

When editing the dashboard in UI mode, the section will be surrounded by red dashed border to show that it is configured by UIX Forge in YAML. All cards contained in the section will show in preview mode, but will not be editable. Use YAML for editing the section.

Warning

Visibility in the main config is not supported for mold: section. Though the Home Assistant visual editor will let you set visibility you will get an error as soon as you save the section. If you need Frontend visibility options not supported by template (e.g. screen) use a stack card as your element and set Frontend visibility on that element, templates supported.

Use mold: footer to overlay a fixed-position card at the bottom of the viewport. The forged element appears pinned at the bottom of the screen regardless of where the custom:uix-forge card is placed in the dashboard. The forge element itself renders as display: contents, so it does not take up space in the grid.

You can use mold: footer on sections, masonry and panel dashboards. On a sections dashboard using in place of standard Home Assistant footer gives you added visibility flexibility by using a template for hidden.

When editing the dashboard in UI mode, the footer is surrounded by a red dashed border to indicate it is configured by UIX Forge in YAML.

Note

The footer element <hui-view-footer> is given the CSS position fixed rather than the standard sticky of a section footer. This is required as sticky is only relative to parent element, so the forged footer can only 'break out' to be a footer using fixed position. This will give a lightly different appearance in that the footer will be centered to the window and not just the dashboard area. Use asymmetrical padding via --uix-forge-footer-padding to adjust if required.

The following forge config key controls the maximum width of the footer:

Key Type Allows Templates Default Description
max_width string 600 Maximum width of the footer in pixels.
type: custom:uix-forge
forge:
  mold: footer
  max_width: 400
element:
  type: tile
  entity: light.bed_light

The following CSS variables can be set on the forge element or any ancestor to customise the footer appearance:

Variable Default Description
--uix-forge-footer-border-width 1px Border width of the forged card within the footer.
--uix-forge-footer-bottom var(--ha-space-2) Distance from the bottom of the viewport.
--uix-forge-footer-padding 0 var(--ha-space-2) Padding applied to the footer container.

Visibility

Use forge.hidden (templates supported) to show or hide the footer:

type: custom:uix-forge
forge:
  mold: footer
  hidden: "{{ is_state('input_boolean.show_footer', 'off') }}"
element:
  type: tile
  entity: light.bed_light

Card features

Use mold: card-feature when using UIX Forge as a card feature. Templates will have an additional context variable available which is provided by the host card. context usually includes entity_id which is the entity set on the host card.

type: tile
entity: light.bed_light
features:
  - type: custom:uix-forge
    forge:
      mold: card-feature
    element:
      type: |
        {{ "light-brightness" if is_state(context.entity_id, "on") else "toggle" }}
features_position: inline

Inline card feature example

If you are using multiple card features in bottom position and using hidden template, you will need to use auto row height to prevent the host card from occupying the additional space when the card feature is hidden.

type: tile
entity: light.bed_light
grid_options:
  columns: 12
  rows: auto
features:
  - type: toggle
  - type: custom:uix-forge
    entity: light.bed_light
    forge:
      mold: card-feature
      hidden: |
        {{ is_state(context.entity_id, "off") }}
    element:
      type: light-brightness
features_position: bottom

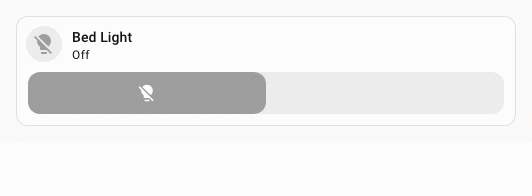

Bottom hidden template card feature example

Cross-context molds

Cross-context molds let you forge one element type while acting as a different element type in the parent container. This is the cleanest replacement for the fragile custom:hui-element and custom:hui-xxx-card hacks, which lack visibility support and can break across HA updates.

Mold Forges Acts as
card_as_row hui-card (card element) Row inside an entities / fold-entity-row
card_as_badge hui-card (card element) Badge in a badge container
row_as_card Row element Card in a card grid
row_as_badge Row element Badge in a badge container
badge_as_card hui-badge (badge element) Card in a card grid
badge_as_row hui-badge (badge element) Row inside an entities / fold-entity-row
badge_as_picture_element hui-badge (badge element) Picture element inside a picture-elements card

Each cross-context mold intercepts the inner element's native visibility event, updates its own hidden state, and re-fires the appropriate event for the parent container. forge.hidden (templates supported) works across all cross-context molds.

For badge_as_picture_element, the badge element config needs to include the regular picture element positioning in style object.

card_as_row — embedding a card as a row

The most common use-case: embed a glance, markdown, tile, or any other card-type element directly inside an entities card (or custom:fold-entity-row). The card is created as a real hui-card element while UIX Forge signals the parent entities card exactly like a regular row.

type: entities
title: "Bedroom"
icon: mdi:bed
entities:
  - type: "custom:uix-forge"
    forge:
      mold: card_as_row
    element:
      type: glance
      entities:
        - entity: light.bed_light
          name: Bed
        - entity: light.ceiling_lights
          name: Ceiling
        - entity: light.kitchen_lights
          name: Kitchen
  - entity: light.bed_light

Glance card embedded as a row inside an entities card

badge as picture-element - embedding a badge as a picture-element

type: picture-elements
elements:
  - type: custom:uix-forge
    forge:
      mold: badge_as_picture_element
    element:
      type: entity
      entity: light.bed_light
      style:
        top: 25%
        left: 50%
image: https://demo.home-assistant.io/stub_config/floorplan.png

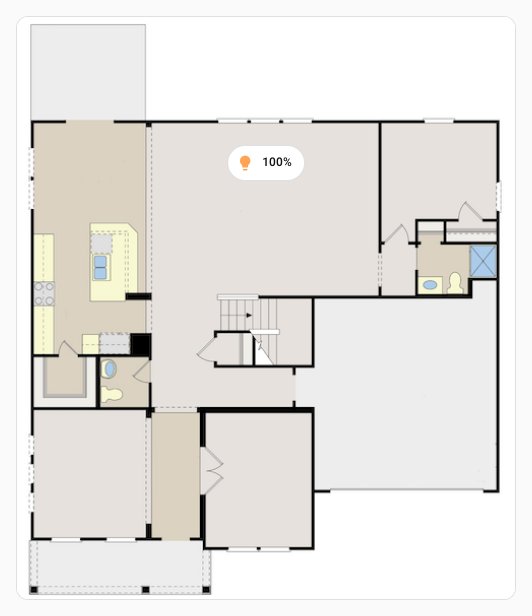

badge embedded in a picture-elements card

Visibility

Unlike custom:hui-element or custom:hui-xxx-card, forge.hidden works correctly with card_as_row. You can use templates to conditionally show or hide the embedded card and the entities card will respond properly:

type: "custom:uix-forge"
forge:
  mold: card_as_row
  hidden: "{{ is_state('sun.sun', 'below_horizon') }}"
element:
  type: glance
  entities:
    - entity: sun.sun
