Grid spark

The grid spark applies CSS Grid layout to any container element inside a UIX Forge forged element. It is designed for use with grid cards and section containers in Home Assistant dashboards, letting you define the full grid layout — columns, rows, gaps, template areas, auto-flow and alignment — with a concise YAML snippet instead of hand-writing style CSS.

It also supports media_queries to override grid properties at specific viewport breakpoints, and elements to assign named grid areas to child elements in order.

Basic usage

Apply a 3-column equal-width grid to the forged element itself:

type: custom:uix-forge
forge:
  mold: card
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 3
element:
  type: grid
  square: false
  cards:
    - type: tile
      entity: light.living_room
    - type: tile
      entity: light.bedroom
    - type: tile
      entity: light.kitchen

columns: 3 expands to grid-template-columns: repeat(3, 1fr).

Tip

When using grid spark with a grid card in a section, it is best to set the section to column_span: 4 and then columns of grid_options in forge mold to columns: full.

type: grid
column_span: 4
cards:
  - type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      ...
element:
  type: grid
  cards:
    ...

Configuration

Base properties

Key	Type	Required	Default	Description
`type`	`string`	✅	—	Must be `grid`.
`for`	`string`		`element`	UIX selector for the target element. Default `element` refers to the root of the forged element. Supports `$` for shadow-root crossings (see DOM navigation).
`columns`	`number` \| `string`		—	Grid template columns. A number becomes `repeat(n, 1fr)`. A string is used verbatim (e.g. `"200px 1fr 200px"`).
`rows`	`number` \| `string`		—	Grid template rows. Same shorthand as `columns`.
`gap`	`number` \| `string`		—	Shorthand gap between rows and columns. A number is treated as pixels (e.g. `8` → `8px`). A string is used verbatim (e.g. `"8px 16px"`).
`column_gap`	`number` \| `string`		—	Column gap only. Same shorthand as `gap`.
`row_gap`	`number` \| `string`		—	Row gap only. Same shorthand as `gap`.
`auto_rows`	`string`		—	`grid-auto-rows` value (e.g. `"minmax(100px, auto)"`).
`auto_columns`	`string`		—	`grid-auto-columns` value.
`auto_flow`	`string`		—	`grid-auto-flow` value: `row`, `column`, `row dense`, or `column dense`.
`justify_items`	`string`		—	`justify-items` value: `start`, `end`, `center`, `stretch`.
`align_items`	`string`		—	`align-items` value: `start`, `end`, `center`, `stretch`.
`justify_content`	`string`		—	`justify-content` value.
`align_content`	`string`		—	`align-content` value.
`place_items`	`string`		—	`place-items` shorthand (`<align-items> / <justify-items>`).
`place_content`	`string`		—	`place-content` shorthand (`<align-content> / <justify-content>`).
`areas`	`string`		—	`grid-template-areas` value. Each row is a quoted string of space-separated area names (e.g. `'"header header" "main sidebar"'`). Can also be specified per entry in `media_queries`.
`elements`	`list[string]`		`[]`	Ordered list of `grid-area` names to assign to the direct children of the target container. The first name is applied to the first child, the second to the second, and so on. See Template areas and elements.
`media_queries`	`list`		`[]`	List of responsive override blocks. See Media queries.

Media queries

Each entry in media_queries has a required query key plus any subset of the base grid properties listed above (including areas).

Key	Type	Required	Description
`query`	`string`	✅	Standard CSS media query condition, e.g. `"(min-width: 768px)"`.
(grid props)	—		Any of `columns`, `rows`, `gap`, `column_gap`, `row_gap`, `auto_rows`, `auto_columns`, `auto_flow`, `justify_items`, `align_items`, `justify_content`, `align_content`, `place_items`, `place_content`, `areas`.

Tip

Use the uix_forge_path() console helper to find the exact DOM selector for your target container.

Examples

Equal-width columns with a gap

type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 4
      gap: 8
element:
  type: grid
  square: false
  cards:
    - type: tile
      entity: light.living_room
    - type: tile
      entity: light.bedroom
    - type: tile
      entity: light.kitchen
    - type: tile
      entity: light.office

Custom column widths

type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 200px 1fr 200px
      gap: 8px 16px
element:
  type: grid
  cards:
    - type: tile
      entity: light.living_room
    - type: tile
      entity: light.bedroom
    - type: tile
      entity: light.kitchen

Template areas and elements

Use areas to define named regions and elements to assign those names to child elements (in order):

type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: auto 150px
      gap: 8
      areas: '"header header" "main sidebar"'
      elements:
        - header
        - main
        - sidebar
element:
  type: grid
  square: false
  cards:
    - type: markdown
      content: "# Header"     # → grid-area: header (spans full width)
    - type: tile
      entity: light.living_room  # → grid-area: main
    - type: tile
      entity: light.bedroom      # → grid-area: sidebar

Each name in elements is applied to the corresponding child element via CSS grid-area. The area name simply needs to match a region defined in areas.

Tip

You can repeat an area name in areas across multiple cells to make a child element span those cells (e.g. "header header" makes header span both columns).

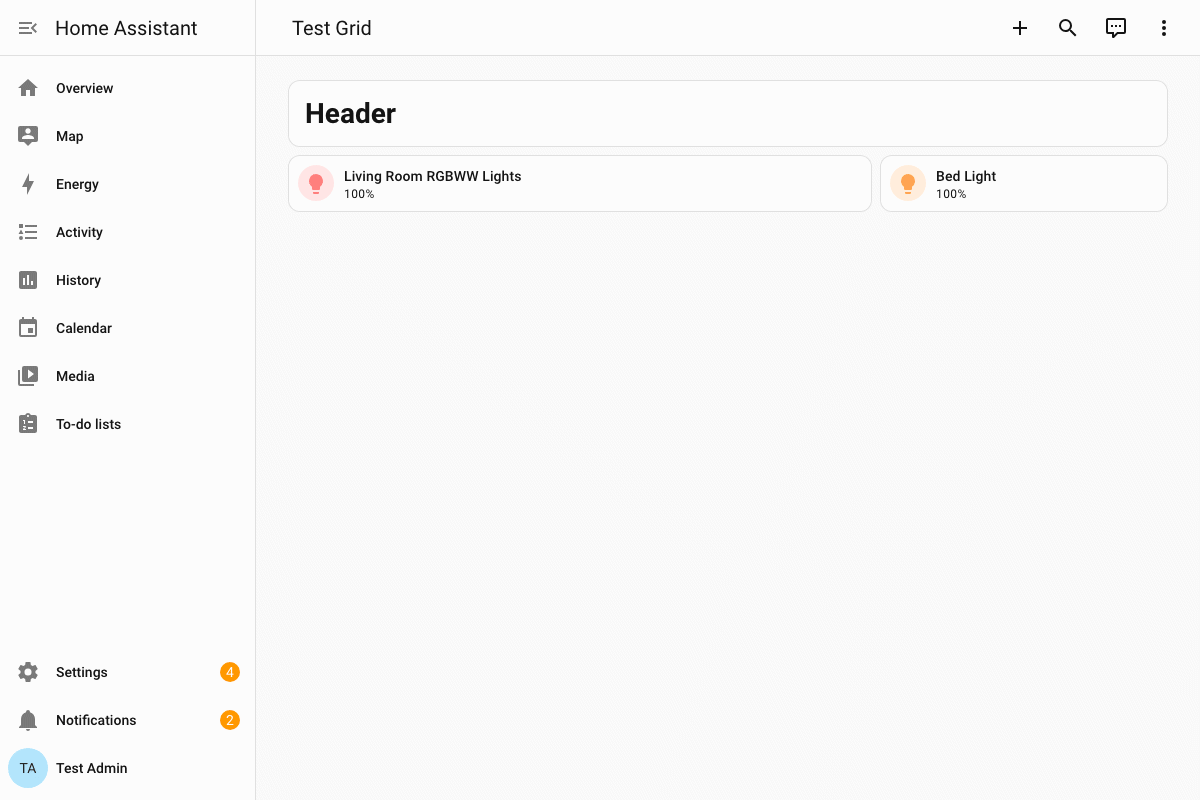

Responsive template areas

Override areas at a larger breakpoint to change the layout while keeping the same element assignments:

type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 1
      gap: 8
      areas: '"header" "main" "sidebar"'
      elements:
        - header
        - main
        - sidebar
      media_queries:
        - query: "(min-width: 768px)"
          columns: 2
          areas: '"header header" "main sidebar"'
        - query: "(min-width: 1200px)"
          columns: 3
          areas: '"header header header" "main main sidebar"'
element:
  type: grid
  square: false
  cards:
    - type: markdown
      content: "# Header"
    - type: tile
      entity: light.living_room
    - type: tile
      entity: light.bedroom

Responsive columns with media queries

Start with 1 column on small screens and expand to 2 or 3 columns at larger breakpoints:

type: custom:uix-forge
forge:
  mold: card
  grid_options:
    columns: full
  sparks:
    - type: grid
      for: "hui-grid-card $ #root"
      columns: 1
      gap: 8
      media_queries:
        - query: "(min-width: 600px)"
          columns: 2
        - query: "(min-width: 1200px)"
          columns: 3
          gap: 16
element:
  type: grid
  square: false
  cards:
    - type: tile
      entity: light.living_room
    - type: tile
      entity: light.bedroom
    - type: tile
      entity: light.kitchen

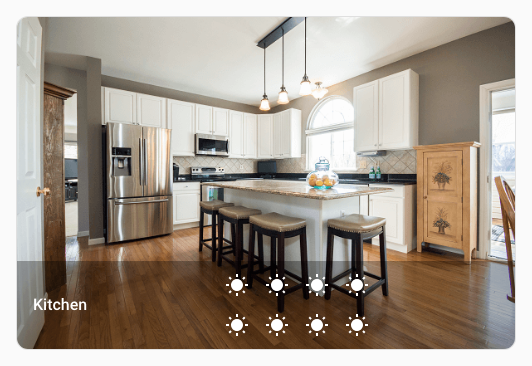

Wrapping entity icons in a picture-glance card

type: custom:uix-forge
forge:
  mold: card
  sparks:
    - type: grid
      for: hui-picture-glance-card $ div.row:nth-of-type(2)
      columns: 4
element:
  type: picture-glance
  title: Kitchen
  image: https://demo.home-assistant.io/stub_config/kitchen.png
  entities:
    - sun.sun
    - sun.sun
    - sun.sun
    - sun.sun
    - sun.sun
    - sun.sun
    - sun.sun
    - sun.sun

Note

The spark sets display: grid automatically — you do not need to set it yourself.
When media_queries or elements are configured, a scoped <style> element is injected into the nearest shadow root (or document.head). All :nth-child() area assignments and @media override rules live in that element, which is removed on disconnect.
When neither media_queries nor elements are configured, grid properties are applied as inline styles — no extra DOM elements are created.
The elements list assigns grid-area names using CSS :nth-child() selectors — it is not per-media-query. To change the layout at a breakpoint, override areas inside media_queries; the same area names on the child elements will follow the new layout automatically.
All grid styles applied by this spark are removed when the forge element is disconnected or the configuration changes, so they do not leak into the surrounding layout.
Only properties that are explicitly configured are written; unconfigured properties are left untouched.
