Styling entities, badges, elements and entity markers

In entities, glance and map cards, each entity can have options. Those elements can be styled individually by adding a uix parameter to the entity configuration.

For those cases, the styles are injected into a shadowRoot, and the bottommost element is thus accessed through :host.

This also applies to view badges and elements in picture-elements cards.

type: entities
entities:
  - entity: light.bed_light
    uix:
      style: |
        :host {
          color: red;
          }
  - entity: light.ceiling_lights
    uix:
      style: |
        :host {
          color: green;
        }
  - entity: light.kitchen_lights
    uix:
      style: |
        :host {
          color: blue;
        }

Entities row coloring

Styling entities conditional rows

Rows in entities conditional rows can be styled directly. If you style the conditional config itself, you need to take care as the conditional row wrapper is not in a shadowRoot so styles may leak to other rows/elements.

Conditional row examples

Styling a conditional row directly. Only the entity row.

type: entities
state_color: true
entities:
  - entity: light.ceiling_lights
  - type: conditional
    conditions:
      - condition: state
        entity: input_boolean.test_boolean
        state: 'on'
    row:
      entity: light.bed_light
      uix:
        style: |
          :host {
            color: red;
          }

Styling a conditional row config using shadowRoot. This method is available for legacy configurations.

type: entities
state_color: true
entities:
  - entity: light.ceiling_lights
  - type: conditional
    conditions:
      - condition: state
        entity: input_boolean.test_boolean
        state: "on"
    row:
      entity: light.bed_light
    uix:
      style:
        hui-toggle-entity-row $ hui-generic-entity-row $: |
          .row {
            color: red;
          }

Both the above will give the following output.

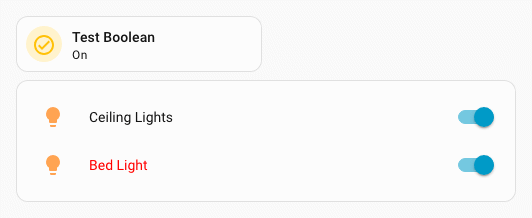

Conditional row styling

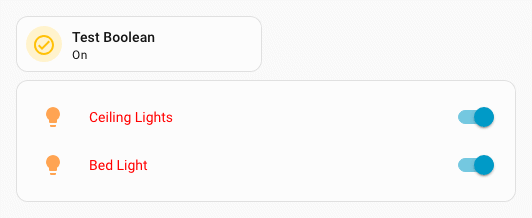

Styling a conditional config where styles will 'leak' to all rows.

type: entities
state_color: true
entities:
  - entity: light.ceiling_lights
  - type: conditional
    conditions:
      - condition: state
        entity: input_boolean.test_boolean
        state: "on"
    row:
      entity: light.bed_light
    uix:
      style: |
        :host {
          --primary-text-color: red;
        }

Styling picture-elements conditional elements

The elements in a picture-elements conditional element can be styled directly. If you style the conditional config itself, you need to take care as the conditional element wrapper is not in a shadowRoot so styles may leak to other rows/elements.

Conditional picture-elements example

Styling a conditional element directly. Only the element.

type: picture-elements
image:
  media_content_id: https://picsum.photos/id/870/200/100?grayscale&blur=2
elements:
  - type: state-badge
    entity: light.ceiling_lights
    style:
      left: 25%
      top: 50%
  - type: conditional
    conditions:
      - entity: input_boolean.test_boolean
        state: "on"
    elements:
      - type: state-badge
        entity: light.bed_light
        style:
          left: 75%
          top: 50%
        uix:
          style: |
            :host {
              color: white;
            }

Styling the conditional config. This method is available for legacy configurations.

type: picture-elements
image:
  media_content_id: https://picsum.photos/id/870/200/100?grayscale&blur=2
elements:
  - type: state-badge
    entity: light.ceiling_lights
    style:
      left: 25%
      top: 50%
  - type: conditional
    conditions:
      - entity: input_boolean.test_boolean
        state: "on"
    elements:
      - type: state-badge
        entity: light.bed_light
        style:
          left: 75%
          top: 50%
    uix:
      style:
        hui-state-badge-element $ ha-state-label-badge $: |
          :host {
            color: white;
          }

Both the above will give the following output.

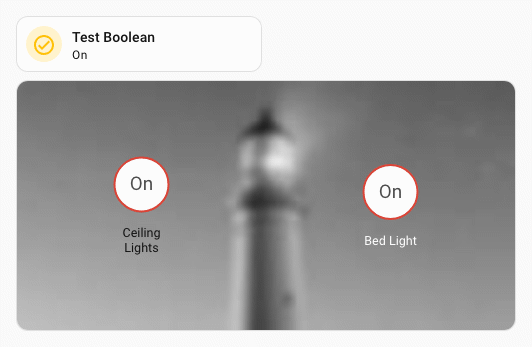

Conditional picture element styling

Styling the conditional config where styles will 'leak' to all elements.

type: picture-elements
image:
  media_content_id: https://demo.home-assistant.io/stub_config/t-shirt-promo.png
elements:
  - type: conditional
    conditions:
      - entity: input_boolean.test_boolean
        state: "on"
    elements:
      - type: state-badge
        entity: sun.sun
        style:
          left: 25%
          top: 25%
    uix:
      style: |
        :host {
          --primary-text-color: purple;
        }

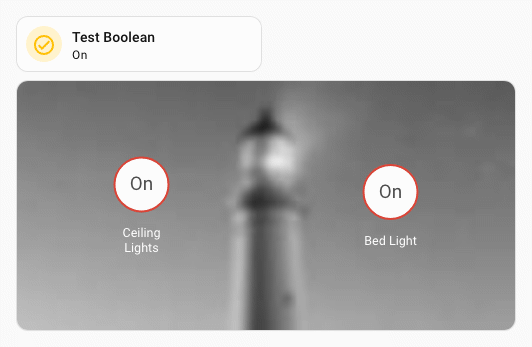

Conditional picture element styling leakage

Styling entity markers on a map

Entity markers on a map can be styled individually by card config or by theme. In both examples the picture image is also styled.

Styling by config.

  type: map
  entities:
    - entity: device_tracker.uix_test_person
      uix:
        style: |
          div.marker {
            border-color: red !important;
            border-width: 5px;
          }
  theme_mode: auto

Styling by theme. Here the & host selector is used to take advantage of the ha-entity-marker having the entity-id as an attribute.

  uix-entity-marker-yaml: |
    "&[entity-id='device_tracker.uix_test_person']": |
      :host {
        --uix-image: /local/media/person_grey.png
      }
      div.marker {
        border-color: red !important;
        border-width: 5px;
      }

Both the above will give the following output

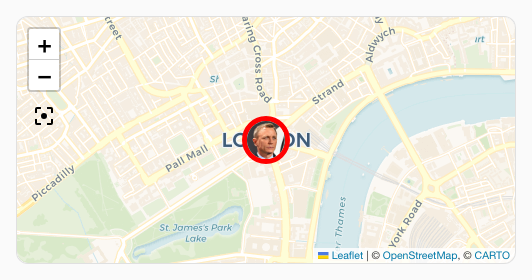

Entity marker styling
