State Badge spark

The state-badge spark inserts a Home Assistant state-badge element as a DOM sibling immediately before or after a target element inside a forged element.

The badge can display:

an entity's state icon, picture, or camera feed (via entity)
a fixed override icon (via override_icon)
a fixed override image URL (via override_image)

Basic usage

Add a state-badge entry to forge.sparks with either after or before to specify the target element, and one of entity, override_icon, or override_image to provide the badge content.

The after/before value is a selector that locates the target element within the forged element. It supports the same DOM navigation syntax as UIX styles, including $ to cross shadow-root boundaries.

Since state-badge is most commonly found inside entity rows, the typical use case is with mold: row. The row element itself has a shadow root, so use $ to cross into it and target the state-badge inside.

Tip

If you are inserting a state badge before another state badge you will need to be specific in your selector so as to not select the inserted icon on updates. State badges added by this spark have an attribute data-uix-forge-state-badge-id so you can use this with your selector. e.g. hui-tile-card $ ha-tile-icon:not([data-uix-forge-state-badge-id])

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: state-badge
          before: $ hui-generic-entity-row $ state-badge:not([data-uix-forge-state-badge-id])
          entity: light.ceiling_lights
    element:
      entity: light.bed_light

Configuration

Key	Type	Required	Default	Description
`type`	`string`	✅	—	Must be `state-badge`.
`after`	`string`	one of `after`/`before` ✅	—	UIX selector for the reference element. The badge is inserted as a sibling after the matched element.
`before`	`string`	one of `after`/`before` ✅	—	UIX selector for the reference element. The badge is inserted as a sibling before the matched element.
`entity`	`string`	✅	—	Entity ID whose current state object is passed to `state-badge`, displaying the entity's native state icon, picture, or camera feed.
`override_icon`	`string`		—	MDI icon string (e.g. `mdi:star`) that overrides the entity's default icon. Can be combined with `entity`.
`override_image`	`string`		—	URL of an image that replaces the icon entirely. Can be combined with `entity`.
`color`	CSS color		—	Fixed color applied to the badge icon. Overrides the entity state color.
`state_color`	`boolean`		—	Whether to apply the entity's state color to the icon. When omitted, `state-badge` applies its default logic (state color is active for `light` entities).

Note

Exactly one of after or before must be provided.
The spark targets the first element matched by after/before.
The inserted state-badge element is placed in the same parent as the target element — it is a sibling, not a child.
If you are inserting a state badge before another state badge, be specific in your selector to avoid re-selecting the inserted badge on updates. State badges added by this spark have a data-uix-forge-state-badge-id attribute you can use for exclusion, e.g. state-badge:not([data-uix-forge-state-badge-id]).

Tip

You can use the uix_forge_path()DOM helper to take the guesswork out of finding the right path for before/after.

Examples

Insert an entity state badge after the existing badge

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: state-badge
          after: $ hui-generic-entity-row $ state-badge
          entity: light.ceiling_lights
    element:
      entity: light.bed_light

Insert a state badge with a fixed color

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: state-badge
          before: $ hui-generic-entity-row $ state-badge:not([data-uix-forge-state-badge-id])
          entity: light.ceiling_lights
          color: teal
    element:
      entity: light.bed_light

Insert a badge with an override icon and no state coloring

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: state-badge
          after: $ hui-generic-entity-row $ state-badge
          entity: light.ceiling_lights
          override_icon: mdi:star
          state_color: false
    element:
      entity: light.bed_light

Insert a badge with an image override

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: state-badge
          after: $ hui-generic-entity-row $ state-badge
          override_image: /local/my-icon.png
    element:
      entity: light.bed_light

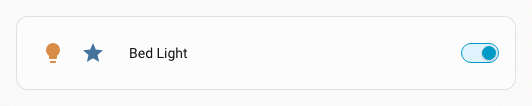

Adding a tooltip spark to the added state-badge

The tooltip spark will retry attaching the tooltip so will find the added state badge on retry

type: entities
entities:
  - type: custom:uix-forge
    forge:
      mold: row
      sparks:
        - type: tooltip
          for: >-
            $ hui-generic-entity-row $
            state-badge[data-uix-forge-state-badge-id]
          content: Ceiling lights badge
        - type: state-badge
          after: $ hui-generic-entity-row $ state-badge
          entity: light.ceiling_lights
          override_icon: mdi:star
          state_color: false
    element:
      entity: light.bed_light
