Examples

Make the card tab the default in the UI add-card dialog

Outcome:

  • Select the card tab when the add-card dialog opens.
  • Make sure the first expander, Suggested or Favorites, is open.
  • Collapse all other expanders.

Method:

  • Listen to show-dialog in the browser realm.
  • The matching rule passes only when the show-dialog event's dialogTag is hui-dialog-create-card.
  • Use an absolute short-form interaction anchor that matches the dialog (hui-dialog-create-card).
  • Directives:
    • Set the dialog's _currTab property to card. As this property is reactive, there is no need to force an update.
    • Set the first expander's expanded property to true, using a relative short-form anchor.
    • Set the other expanders' expanded property to false, using relative short-form anchors.
uix_broker:
  - realm: browser
    listen: show-dialog
    anchor: '&home-assistant $ hui-dialog-create-card'

    rules:
      - '@captured.dialogTag': hui-dialog-create-card
    directives:
      - type: property
        set: _currTab
        value: card
        wait: 1000
      - type: property
        anchor: >-
          $ ha-dialog div.body hui-card-picker $ div#content div:nth-of-type(1)
          ha-expansion-panel
        set: expanded
        value: true
      - type: property
        anchor: >-
          $ ha-dialog div.body hui-card-picker $
          div#content>ha-expansion-panel:nth-of-type(1)
        set: expanded
        value: false
      - type: property
        anchor: >-
          $ ha-dialog div.body hui-card-picker $
          div#content>ha-expansion-panel:nth-of-type(2)
        set: expanded
        value: false
      - type: property
        anchor: >-
          $ ha-dialog div.body hui-card-picker $
          div#content>ha-expansion-panel:nth-of-type(3)
        set: expanded
        value: false

Tip

Save the YAML as a new file in your Home Assistant configuration directory or subdirectory, then register it using the UIX options config flow.

Automation sidebar and YAML mode

Open the automation editor sidebar in YAML mode by default

Combine this with the following example to allow changing YAML mode; by itself, this example locks the automation sidebar to always use YAML mode.

Outcome:

  • Set the automation sidebar to YAML mode.
  • Add button in automation sidebar header to toggle YAML mode.

Method:

  • Listen to the open-sidebar event in the browser realm.
  • Set reentrant: false to prevent re-entry when toggling YAML mode itself fires open-sidebar.
  • The interaction anchor is manual-automation-editor, which is found through an outward search across the event's composed path and shadow-root boundaries.
  • Use a short-form host-element path selection rule to continue only when uixBlockAutoYamlMode does not exist on the interaction anchor's JavaScript object. This is important when combined with the following example.
  • Use a call directive to invoke _toggleYamlMode() on ha-automation-sidebar, resolved by searching the first shadow root of the interaction anchor, manual-automation-editor.
  • Use a button directive to place a button before the three dots sidebar menu. The action used in UIX event action to which UIX Broker injects the anchor element so toggle-yaml-mode bubbles up through manual-automation-editor allowing the next example, Allow toggle YAML mode in automation editor to cover both the stock toggle button in the dropdown as well as the added UIX Broker button.
  - realm: browser
    listen: open-sidebar
    reentrant: false
    anchor: manual-automation-editor <$$ target
    rules:
      - '{!.uixBlockAutoYamlMode}'
      - anchor: $ ha-automation-sidebar $$ ha-automation-sidebar-card
        match: '{.yamlMode=false}'
    directives:
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: button
        before: $ ha-automation-sidebar $$ ha-automation-sidebar-card $ ha-dialog-header slot:nth-of-type(3) ha-dropdown
        icon: mdi:code-braces
        tap_action:
          action: fire-dom-event
          uix:
            action: event
            name: toggle-yaml-mode

Allow toggle YAML mode in automation editor

Use this example with the previous one and the next example (a keyboard shortcut to toggle YAML mode).

The Toggle YAML Mode menu item in the automation editor runs code that fires toggle-yaml-mode, which ultimately calls _toggleYamlMode() on manual-automation-editor. Without coordination, this would always force YAML mode. This example works around that by blocking the event, setting a guard property, calling the function directly, then clearing the guard.

Outcome:

  • Allow the Toggle YAML Mode menu item to switch between the visual editor and YAML mode.

Method:

  • Listen to toggle-yaml-mode in the browser realm.
  • The interaction anchor is manual-automation-editor, which is found through an outward search across the event's composed path and shadow-root boundaries.
  • Directives:
    • Block the event because it will be handled directly.
    • Set uixBlockAutoYamlMode to true on manual-automation-editor.
    • Use a call directive to invoke _toggleYamlMode() on ha-automation-sidebar, resolved by searching the first shadow root of the interaction anchor, manual-automation-editor. As the previous example checks for the absence of uixBlockAutoYamlMode, it does not proceed with its directive to force YAML mode.
    • Clear uixBlockAutoYamlMode so the previous example once again forces YAML mode when the sidebar opens.
  - realm: browser
    listen: toggle-yaml-mode
    anchor: manual-automation-editor <$$ target
    directives:
      - type: block
      - type: property
        set: uixBlockAutoYamlMode
        value: true
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: property
        clear: uixBlockAutoYamlMode

Toggle YAML mode in automation editor with keyboard shortcut

Outcome:

  • Use a keyboard shortcut to toggle YAML mode in the automation editor.

Method:

  • Listen for a keyboard shortcut in the shortcut realm ($mod+Shift+Y in the code below; change it to suit).
  • Use the absolute interaction anchor &home-assistant $$ manual-automation-editor because the keyboard shortcut target can be any DOM element.
  • Directives:
    • Set uixBlockAutoYamlMode to true on manual-automation-editor.
    • Use a call directive to invoke _toggleYamlMode() on ha-automation-sidebar, resolved by searching the first shadow root of the interaction anchor, manual-automation-editor. As the automatic YAML-mode example checks for the absence of uixBlockAutoYamlMode, it does not proceed with its directive to force YAML mode.
    • Clear uixBlockAutoYamlMode so the automatic YAML-mode example once again forces YAML mode when the sidebar opens.
  - realm: shortcut
    enabled: true
    listen: $mod+Shift+Y
    anchor: '&home-assistant $$ manual-automation-editor'
    directives:
      - type: property
        set: uixBlockAutoYamlMode
        value: true
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: property
        clear: uixBlockAutoYamlMode

Automation sidebar and YAML mode complete

Complete YAML for the three automation sidebar examples

Save the YAML as a new file in your Home Assistant configuration directory or subdirectory, then register it using the UIX options config flow.

uix_broker:
  - realm: browser
    listen: open-sidebar
    reentrant: false
    anchor: manual-automation-editor <$$ target
    rules:
      - '{!.uixBlockAutoYamlMode}'
      - anchor: $ ha-automation-sidebar $$ ha-automation-sidebar-card
        match: '{.yamlMode=false}'
    directives:
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: button
        before: $ ha-automation-sidebar $$ ha-automation-sidebar-card $ ha-dialog-header slot:nth-of-type(3) ha-dropdown
        icon: mdi:code-braces
        tap_action:
          action: fire-dom-event
          uix:
            action: event
            name: toggle-yaml-mode
  - realm: browser
    listen: toggle-yaml-mode
    anchor: manual-automation-editor <$$ target
    directives:
      - type: block
      - type: property
        set: uixBlockAutoYamlMode
        value: true
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: property
        clear: uixBlockAutoYamlMode
  - realm: shortcut
    enabled: true
    listen: $mod+Shift+Y
    anchor: '&home-assistant $$ manual-automation-editor'
    directives:
      - type: property
        set: uixBlockAutoYamlMode
        value: true
      - anchor: $ ha-automation-sidebar
        method: _toggleYamlMode
        type: call
      - type: property
        clear: uixBlockAutoYamlMode

Prioritize entity triggers when adding an automation editor element

Outcome:

  • Jump straight to entity triggers when adding an automation editor element.

Method:

  • Listen for the show-dialog event in the browser realm.
  • First matching rule passes only when the show-dialog event's dialogTag is add-automation-element-dialog.
  • Second matching rules passes only when the type is trigger and not other types which can be action or condition.
  • Use an absolute short-form interaction anchor that matches the dialog (add-automation-element-dialog).
  • Directives:
    • Set the _tab property to groups; groups is the value for By Type.
    • Set _selectedGroup to entity to focus on the generic entity triggers.
  - realm: browser
    listen: show-dialog
    anchor: '&home-assistant $ add-automation-element-dialog'
    rules:
      - '@captured.dialogTag': add-automation-element-dialog
      - "@captured.dialogParams.type": trigger
    directives:
      - type: property
        set: _tab
        value: groups
      - type: property
        set: _selectedGroup
        value: entity

Add tools button to sidebar title

Outcome: A tools button that navigates to /config/tools.

Method:

  • Listen for the uix-broker-ready event in the browser realm.
  • Uses compact absolute anchor for ha-sidebar
  • The matching rule only passes when user.is_admin property of the hass object on home-assistant is true (this could also be user.is_owner to match only the owner user).
  • Uses button directive to place button after the title using simple style object to give a box-shadow and reduced icon size.
  - realm: browser
    listen: uix-broker-ready
    anchor: "&home-assistant $ home-assistant-main $ ha-sidebar"
    rules:
      - anchor: "&home-assistant"
        match: "{.hass.user.is_admin=true}"
    directives:
      - type: button
        anchor: "$ div.menu div.title"
        icon: mdi:hammer
        color: purple
        size: s
        tap_action:
          action: navigate
          navigation_path: /config/tools
        style:
          "--ha-button-box-shadow": rgba(0, 0, 0, 0.1) 0px 4px 12px
          "--ha-icon-button-size": 32px

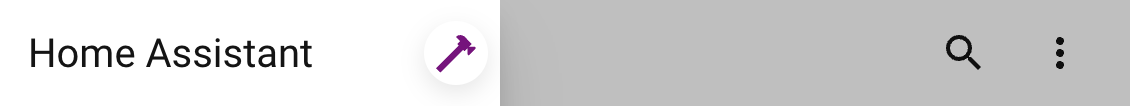

Broker button directive example

Change device entities suggested card back to entities for section views

Outcome:

  • Make the device entities suggested card for section views an entities card. NOTE: This is not the same as what is suggested for other views which is based on entity domain.

Method:

  • Listen for the show-dialog event in the browser realm.
  • The matching rule passes only when the show-dialog event's dialogTag is hui-dialog-suggest-card.
  • The interaction is set as reentrant: false because it fires show-dialog itself.
  • The interaction anchor is &home-assistant. Since the directives include block, an anchor that exists synchronously is required. Alternatively, anchor: target could be used as the event-path anchor, with anchor: "&home-assistant" set on the event directive.
  • Directives:
    • A block directive stops propagation on the original event.
    • An event directive re-dispatches the event with a modified dialogParams.sectionConfig, setting cards to a single entities. sectionConfig.type and sectionConfig.title are copied from captured data using the @captured form. To avoid copying the rest of the event data object by object, capture_data: deep performs a deep merge of sectionConfig.
  - realm: browser
    listen: show-dialog
    debug: true
    reentrant: false
    anchor: "&home-assistant"
    rules:
      - "@captured.dialogTag": hui-dialog-suggest-card
    directives:
      - type: block
      - type: event
        name: show-dialog
        bubbles: true
        composed: true
        capture_data: deep
        data:
          dialogParams:
            sectionConfig:
              type: "@captured.dialogParams.sectionConfig.type"
              title: "@captured.dialogParams.sectionConfig.title"
              cards:
                - type: entities
                  entities: "@captured.dialogParams.entities"

Light button on Home dashboard menu item on sidebar

Outcome:

  • Similar to Add tools button to sidebar title this example adds a toggle button for a light to the Home sidebar menu item. To reflect the current state of the light, a Server realm to Browser realm helper interaction is used as well to have the main interaction run when the entity state changes.

Method (sidebar interaction):

  • Listen for the uix-broker-ready and uix-update-sidebar events in the browser realm. uix-update-sidebar is a custom event and any name could be used as long as it matched the helper interaction.
  • Uses compact absolute anchor for ha-sidebar
  • Directives:
    • javascript directive to set object parameters to be used in button directive. icon and color are set by entity state.
    • Uses button directive to place button after the Home menu item using simple style object to give a box-shadow and reduced icon size. Action set to toggle light. NOTE: Config and operation of this button is per UIX Forge Button spark, for which the entity is included for action only.
  - realm: browser
    listen:
      - uix-broker-ready
      - uix-update-sidebar # custom event from Server realm interaction helper
    anchor: "&home-assistant $ home-assistant-main $ ha-sidebar"
    directives:
      - type: javascript
        id: button_config
        code: |
          const entity = 'light.bed_light';
          const state = hass.states[entity].state;
          return {
            entity: entity,
            icon: state === 'on' ? 'mdi:lightbulb-on' : 'mdi:lightbulb-off',
            color: state === 'on' ? 'var(--state-active-color)' : 'var(--state-inactive-color)'
          };
      - type: button
        anchor: "$ ha-list-item-button#sidebar-panel-home $ a#item div.content"
        icon: "@button_config.icon"
        color: "@button_config.color"
        entity: "@button_config.entity"
        size: s
        tap_action:
          action: toggle
        style:
          "--ha-button-box-shadow": rgba(0, 0, 0, 0.1) 0px 4px 12px
          "--ha-icon-button-size": 32px
          "--uix-button-margin": 6px

Method (helper interaction):

Outcome:

  • Fire a custom Browser event when the entity state changes. This makes the example interaction above reactive to state changes for light.bed_light.

Method:

  • Listen for state_changed event in server realm.
  • Set anchor to home-assistant element using absolute compact anchor form.
  • event directive to fire the custom Browser event uix-update-sidebar if the changed state entity_id is light.bed_light. This example would also fire if the entity_id is light.other_light. This is included in this example to show use of or: in match; you would use such a technique if you add other button directives to the example above.
  - realm: server
    listen: state_changed
    anchor: "&home-assistant"
    directives:
      - type: event
        name: uix-update-sidebar
        rules:
          - type: captured
            path: data.entity_id
            match:
              or:
                - light.bed_light
                - light.other_light

Button directive light toggle example
